As part of an honors thesis I have cadets working on using RCNNs for image detection. The easiest place for them to begin is to learn CNNs. In keras there is the mnist data set. It is a data set of handwritten digits. It is a great data set to use to familiarize yourself with what images look like to a computer and how to build CNNs. This post attempts to provide a first time student information on how to use keras to build CNNs.

from keras.models import Sequential
from keras.layers import Dense, Conv2D, Flatten, MaxPooling2D
from keras.datasets import mnist
from matplotlib import pyplot
from keras.utils import to_categorical

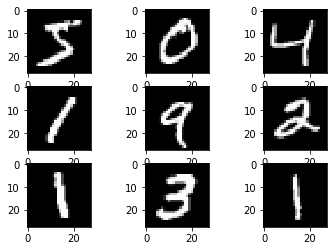

The mnist dataset

(x_train, y_train), (x_test, y_test) = mnist.load_data()

for i in range(9):
    # define subplot
    pyplot.subplot(330 + 1 + i)
    # plot raw pixel data
    pyplot.imshow(x_train[i], cmap=pyplot.get_cmap('gray'))

Reshape the data

For example, we know that the images are all pre-aligned (e.g. each image only contains a hand-drawn digit), that the images all have the same square size of 28 × 28 pixels, and that the images are gray scale.

Therefore, we can load the images and reshape the data arrays to have a single color channel.

Here is the current shape.

What does this image look like.

The image is in gray scale so each pixel has a number 0 - 255 for the shade of grey. Here is the general shape of the array of images.

x_train.shape

(60000, 28, 28)

Here is a breakdown of the numbers:

1. 60000 is the number of images in the array
2. 28 is the number of pixels for the width
3. 28 (the second one) is the number of pixels for the height

Here is what a single image looks like in data form

x_train[1]

array([[  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,  51, 159, 253, 159,  50,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,  48, 238, 252, 252, 252, 237,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
         54, 227, 253, 252, 239, 233, 252,  57,   6,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  10,  60,
        224, 252, 253, 252, 202,  84, 252, 253, 122,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0, 163, 252,
        252, 252, 253, 252, 252,  96, 189, 253, 167,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,  51, 238, 253,
        253, 190, 114, 253, 228,  47,  79, 255, 168,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,  48, 238, 252, 252,
        179,  12,  75, 121,  21,   0,   0, 253, 243,  50,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,  38, 165, 253, 233, 208,
         84,   0,   0,   0,   0,   0,   0, 253, 252, 165,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   7, 178, 252, 240,  71,  19,
         28,   0,   0,   0,   0,   0,   0, 253, 252, 195,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,  57, 252, 252,  63,   0,   0,
          0,   0,   0,   0,   0,   0,   0, 253, 252, 195,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0, 198, 253, 190,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0, 255, 253, 196,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  76, 246, 252, 112,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0, 253, 252, 148,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  85, 252, 230,  25,   0,   0,   0,
          0,   0,   0,   0,   0,   7, 135, 253, 186,  12,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  85, 252, 223,   0,   0,   0,   0,
          0,   0,   0,   0,   7, 131, 252, 225,  71,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  85, 252, 145,   0,   0,   0,   0,
          0,   0,   0,  48, 165, 252, 173,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  86, 253, 225,   0,   0,   0,   0,
          0,   0, 114, 238, 253, 162,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  85, 252, 249, 146,  48,  29,  85,
        178, 225, 253, 223, 167,  56,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  85, 252, 252, 252, 229, 215, 252,
        252, 252, 196, 130,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,  28, 199, 252, 252, 253, 252, 252,
        233, 145,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,  25, 128, 252, 253, 252, 141,
         37,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0],
       [  0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,   0,
          0,   0]], dtype=uint8)

So the above array looks a little complicated, but it is not so bad. The image is 28 x 28. The following represents the first row of pixels:

[ 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

In the grey scale 0 = black. So the first row is all black pixels. You will notice there are 28 - zeros.

The next row is:

[ 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

It is also all black. You will notice there are 28 of the above lists. One list of 28 for each row of pixels. When you see a number that is something lighter than black. If you see 255 it is white.

Reshaping the data so that it can be used in a CNN

The only thing we need to add to the shape is the number of channels. The mnist data set is in gray scale so it is just one (1) channel. The other common option is three (3) channels for the Red-Green-Blue channels. You could have a lot more channels, e.g. the infrared channel would give you four.

x_train= x_train.reshape((x_train.shape[0], x_train.shape[1], x_train.shape[2], 1))
x_test= x_test.reshape((x_test.shape[0], x_test.shape[1], x_test.shape[2], 1))

The new shape

x_train.shape

(60000, 28, 28, 1)

What an image looks like now

x_train[0]

array([[[  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0]],

       [[  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0],
        [  0]],...], dtype=uint8)

It looks different and here is why. Because we added a channel you will now have a new sub list in the original list.

The original list looked like this:

[ 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

The new list looks like this:

[[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0], [ 0],[ 0],[ 0],[ 0], [ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0],[ 0], [ 0],[ 0]]

We added one (1) channel so instead of 0 you have [0]. Had we added three (3) channels you would have had [0,0,0].

Adjusting the response variable

We are not going to create dummy variables for the response (the numbers 0 - 9)

Here is what it looks like currently

y_train

array([5, 0, 4, ..., 5, 6, 8], dtype=uint8)

y_train = to_categorical(y_train)
y_test = to_categorical(y_test)

Here is what it looks like now

y_train

array([[0., 0., 0., ..., 0., 0., 0.],
       [1., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       ...,
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 1., 0.]], dtype=float32)

Intialize the model object

model = Sequential()

Add a convolutional layer

model.add(Conv2D(10, kernel_size = 3, activation = 'relu',strides=(1, 1),
                input_shape = (x_train.shape[1],x_train.shape[2],x_train.shape[3]), padding = 'valid'))

What is in the layer

1. 10. This is the number of filters. A filter could be related to anything. One filter could be associated with finding the edges, one could be finding the number of edges…

2. kernel_size = 3. This specifies the height and width of the convolution window. In this case our convolution window is a 3 x 3 matrix, which means it exams 9 pixels (3x3) at one time.

3. strides = (1,1). This is the number of pixels your convolution window moves. It moves 1 horizontally until it hits the far side, starts over 1 row down and continues until it finishes the image.

4. input_shape = ... this is the size of the input.

5. padding = 'same'. adds a zero padding to the image. The default is padding = 'valid'

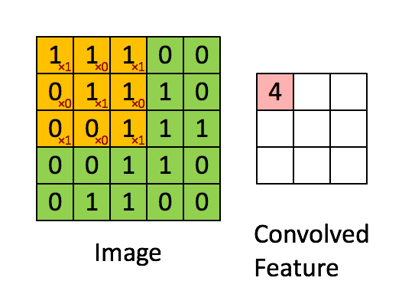

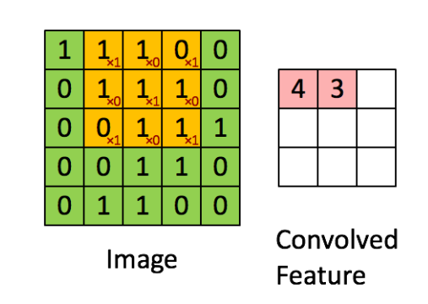

A convolution explained

The objective of the Convolution Operation is to extract the high-level features such as edges, from the input image. In this network there filters/kernels that are 3 x 3. They move along the image at a stride length of 1. Here is to pictures the explain what is happening. Each time the dot product is used to calculate the “pink” element of the output matrix.

Calculating the size of the output

$O = ((I - K + 2P )/S) + 1$

where,

$I = $size of the input

$K = $size of the kernel

$P = $size of the zero padding

$S = $strides

Pooling

Pooling layer is responsible for reducing the spatial size of the Convoluted Feature. This is to decrease the computational power required to process the data through dimensionality reduction. Furthermore, it is useful for extracting dominant features which are rotational and positional invariant, thus maintaining the process of effectively training of the model.

model.add(MaxPooling2D((2,2)))

In this case the Max Pooling will reduce the dimensionality by half. We started with 28 x 28. Each convoluted layer will be 26 x 26 and with a pooling of (2,2) the pooled layers become 13 x 13. Below is an example of how Max Pooling works. It takes the max value out of a 2x2 matrix.

Add another Max Pooling layer becuase it makes it work a lot better

Now the layers dimensions will change from 13 x 13 to 6 x 6 because $13$ is odd.

model.add(MaxPooling2D((2,2)))

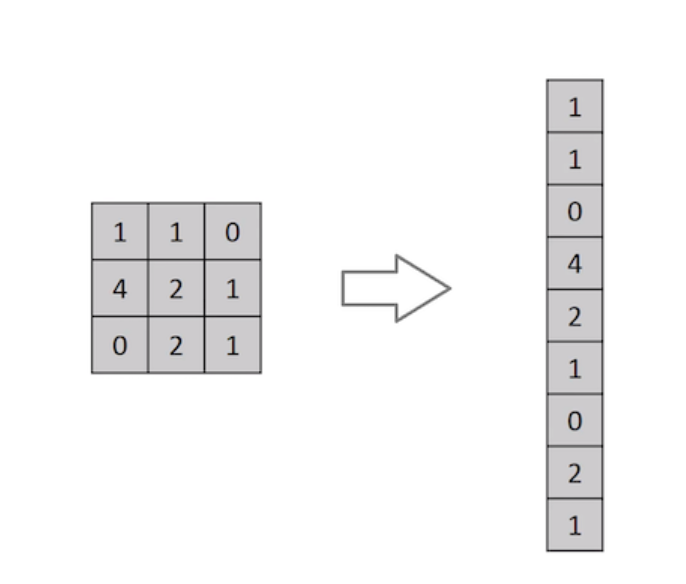

Flatten the output of the convolutional layer

Flatten is like it sounds. We will take the matrix and flatten it into a vector.

model.add(Flatten())

Add a dense layer with

This dense layer will have 100 nodes with a relu activation function.

model.add(Dense(100,activation = 'relu'))

Add an output layer for the 10 categories

We are adding 10 nodes in the output layer because there are 10 numbers (0-9)

model.add(Dense(10, activation='softmax'))

What the model looks like

Here is a picture that explains what the model looks like.

Compile the model

model.compile(optimizer='adam',
              loss='categorical_crossentropy',
              metrics=['accuracy'])

Fit the model on a training set

model.fit(x_train, y_train,
          validation_split=0.2,
          epochs=3, batch_size=10)

Train on 48000 samples, validate on 12000 samples
Epoch 1/3
48000/48000 [==============================] - 23s 470us/step - loss: 2.3569 - acc: 0.8215 - val_loss: 0.1542 - val_acc: 0.9552
Epoch 2/3
48000/48000 [==============================] - 20s 417us/step - loss: 0.1382 - acc: 0.9602 - val_loss: 0.1163 - val_acc: 0.9654
Epoch 3/3
48000/48000 [==============================] - 22s 453us/step - loss: 0.0957 - acc: 0.9710 - val_loss: 0.1051 - val_acc: 0.9706

<keras.callbacks.History at 0x7f3b8ff31940>

Evaluate the model on separate test data

model.evaluate(x_test,y_test,batch_size=10)

10000/10000 [==============================] - 2s 171us/step

[0.0985311105441906, 0.9700999952554703]

x_test[1:2].shape

(1, 28, 28, 1)

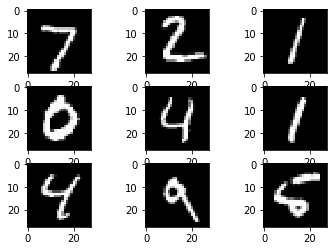

for i in range(9):
    pyplot.subplot(330 + 1 + i)
    pyplot.imshow(x_test[i].reshape(28,28), cmap=pyplot.get_cmap('gray'))

prediction = []

for i in range(9):
    digit = model.predict_classes(x_test[i].reshape(1, 28, 28, 1))
    prediction.append(digit[0])

prediction

[7, 2, 1, 0, 4, 1, 4, 9, 5]

Model Summary

model.summary()

_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
conv2d_16 (Conv2D)           (None, 26, 26, 10)        100
_________________________________________________________________
max_pooling2d_6 (MaxPooling2 (None, 13, 13, 10)        0
_________________________________________________________________
max_pooling2d_7 (MaxPooling2 (None, 6, 6, 10)          0
_________________________________________________________________
flatten_11 (Flatten)         (None, 360)               0
_________________________________________________________________
dense_20 (Dense)             (None, 100)               36100
_________________________________________________________________
dense_21 (Dense)             (None, 10)                1010
=================================================================
Total params: 37,210
Trainable params: 37,210
Non-trainable params: 0
_________________________________________________________________

How to determine the number of parameters

1. conv2d - $100$ parameters. There are 10 convolutions and the kernel is 3 x 3. Each portion of the kernel has a parameter that is trained. $3*3*10 = 90$ you then add $10$ for the bias parameters. The total is $90 + 10 = 100$
2. max_pooling2d - 0, but note how it reduced the dimensionality
3. max_pooling2d - 0, but note how it reduced the dimensionality
4. flatten - 0
5. dense - $36100$ parameters. This comes from $6*6=36$ (this is from the dimensions of the pooled layer. $36*10 = 360$ because you have 10 convolutions. $360*100 = 36000$ because of the dense layer of $100$ nodes. $36000+100 = 36100$ because of the $100$ bias parameters.
6. dense_15 - $1010$ parameters. This comes from $100*10 = 1000$ because $100$ nodes are fully connected to $10$ nodes. $1000+10 = 1010$ because of the 10 bias terms.
